Dental Equipment

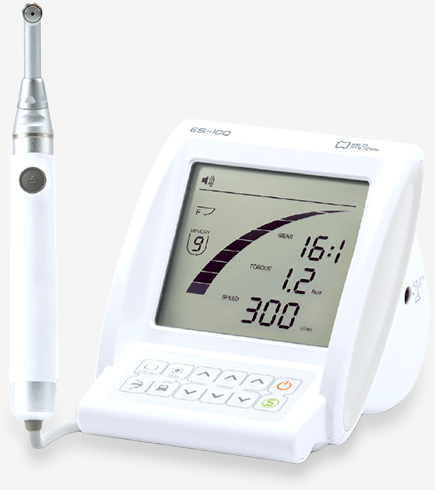

ES-100

Endodontic Micro Motor

Feature & Benefit

Powerful Performance

  • RPM: 250~800RPM(16:1 Contra-angle)
  • Torque: 0.6~6.4 N.cm
  • Working time: 10hrs (2200mAh)

Excellent Hand-piece

  • Chemically proven surface of Hand-piece
  • Durable contra-angle with small size head

Torque Auto Reverse

Application

  1. Used in root canal shaping procedure in standard endodontic treatment using rotary endodontic files and rotary endodontic drills

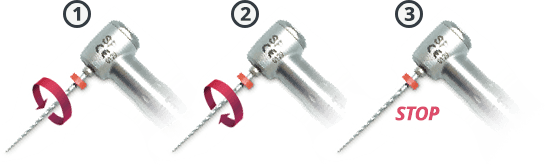

Auto Reverse

When the preset torque is reached ①, the handpiece drive runs in an anti-clockwise direction ②, freeing the file. Then drive then stops ③.

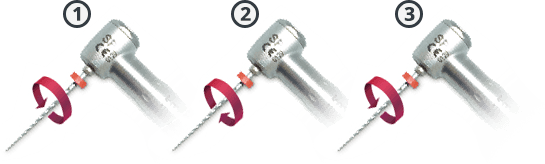

Auto Forward

When the preset torque is reached in Auto Forward mode ①, the file automatically turns in the opposite direction ②, freeing the file, then continues rotating in a clockwise direction ③.

Specification

Rated Input

7.2V, 1.2A

Weight

443g

Components

ES-100

ES-100 main unit × 1EA

Hand piece × 1EA

Contra angle × 1EA

AC Adapter × 1EA

Order information

ES-100

Contra-angle

Hand-piece

Adapter

Lithium-Ion Battery(ES-100)

ES-100
