Neurosurgery

iDOLPHIN-S2

Disposable Epiduroscopic Catheter

2195

iDOLPHIN-S2 is an upgraded version of the previous model (iDOLPHIN-S)

Feature

The world's first
all-in-one System

  • Catheter with attached camera
  • No need of arthroscopic system

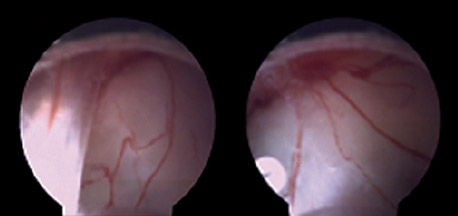

High definition image

High definition resolution of 62,500 pixel

iDOLPHIN-S2 METABIOMED

M Company

S Company

Wide working channel

  • 4.35F ( ≤ 1.45 mm)
  • Available for injection of medications or usage of various endoscopic accessories into the working channel of the catheter

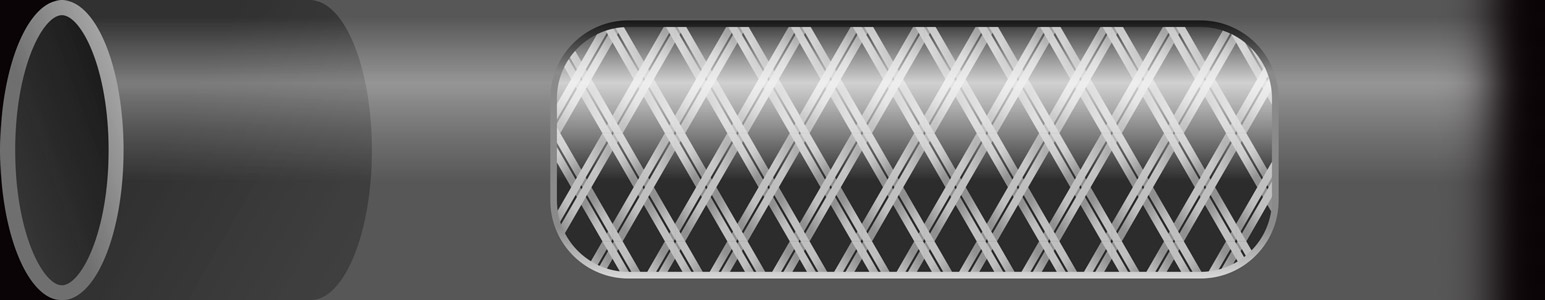

Stable meshed catheter with locking system

Safe treatment without catheter’s torsion

Indications

  • Chronic low back pain
  • Lumbar spinal stenosis
  • Herniated lumbar disk
  • Intervertebral disk

Competitor comparison chart

Platform

iDOLPHIN-S2Digital

M CompanyFiber Optic

I CompanyFiber Optic

S CompanyFiber Optic

Scope-Use Type

iDOLPHIN-S2Single-Use

M CompanySterilize Reprocess

I CompanySterilize Reprocess

S CompanySterilize Reprocess

Camera Type

iDOLPHIN-S2CMOS imager 62,500 pixel

M Company15,000 pixel

I Company10,000 pixel

S Company10,000 pixel

Image Quality

iDOLPHIN-S2Very Good

M CompanyBad

I CompanyBad

S CompanyBad

Image Processor Size

iDOLPHIN-S2Small

M CompanyBig

I CompanyBig

S CompanyBig

Arthroscopic System

iDOLPHIN-S2No need

M CompanyNeed

I CompanyNeed

S CompanyNeed

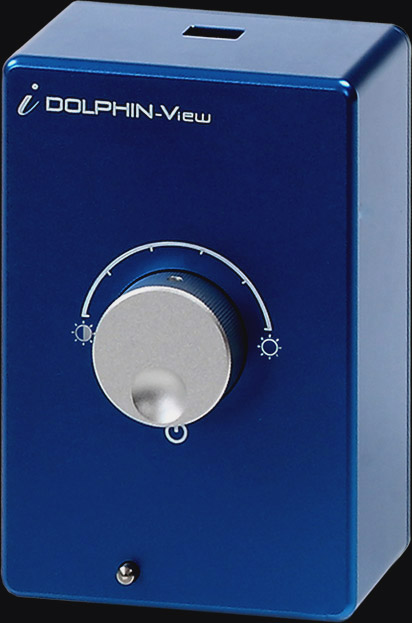

iDOLPHIN-View

IDOLPHIN-View is a Light Source Device that receives power from the PC and supplies power to the Micro Endoscope.

The Light Source Device receives image data from the Micro Endoscope and transmits the data to the PC.

The device controls the illumination, so the users can control the intensity of the light that is suitable for observing the targeted area.

iDOLPHIN-Sheath

The Sheath is an insertion device to create an opening into the body through which the catheter may be introduced. Either of two types of sheath can be supplied along with catheter, depend on User's preference.

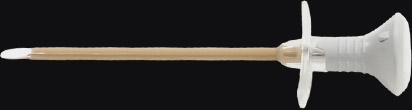

Sheath-P Peek sheath

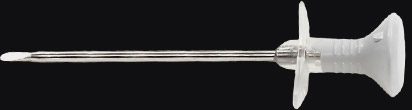

Sheath-S Stainless steel sheath

Configuration

iDOLPHIN-S2 and iDOLPHIN-View

iDOLPHIN-S2
Multi-Purpose Micro Endoscope
iDOLPHIN - View
Image processor

USB Connection

Desktop or Laptop (Windows OS)

Specification

iDOLPHIN-S2 specifications

Disposable Epiduroscopic Catheter

Cath length 300mm

Field of view Min 100°

Angle of Deflection L (100°) / R (100°)

Resolution 62,500 Pixel (250 × 250)

iDOLPHIN-View specification

Light Source for Endoscope

Electrical Specificationh 500mA / 5V DC

LED colorw White

LED control 0 to 100 knob

Minimum recommended specification for Desktop or PC

Operating System Windows 7,8,10

Processor Intel i5

Memory 8GB Ram

Storage 5GB available

Resolution Min 1280*1024, 15inch
