General Surgery

META TROCAR

Bladeless Trocar & Filter

0068

Excellent VOC removal capability

and deodorizing effect

99.99%

Remove H1N1, H1N2 Virus

Absorption performance improvement

By surface texturing

99.99995%

Filtration Efficiency, ULPA

Feature

Clear visibility

Transparent cannula offers better visibility during every surgical steps.

Scope locking tab

Locking tab can secure the endoscopic camera so that it doesn’t move.

Bladeless trocar tip

Bladeless design avoids to cut abdominal wall

Strong trocar body

Stable insertion without risk of breakage

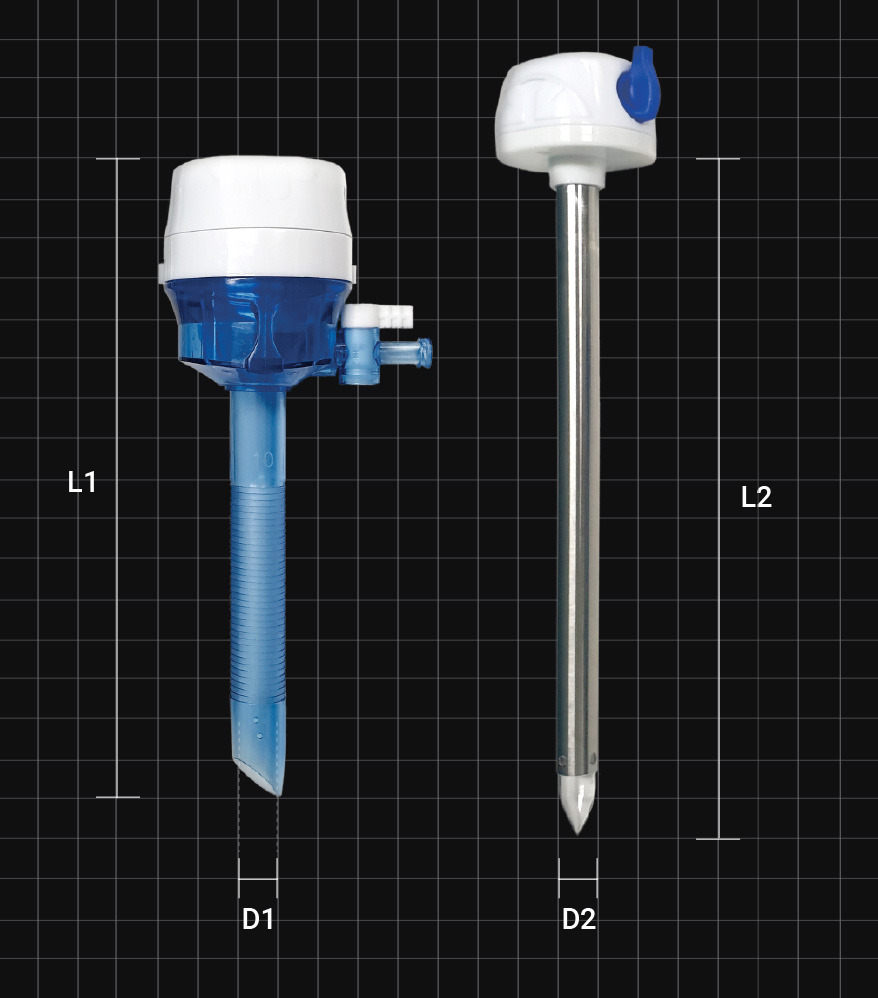

Specification

META TROCAR

Unit(mm)

Model Name D1 D2 D3 D4
EN-CP05-75A 5.70 5.70 124.0 131.0
EN-CP05-100A 5.70 5.70 149.0 156.0
EN-CP10-100A 11.0 11.0 125.5 168.0
EN-CP12-75A 12.80 12.80 127.5 144.0
EN-CP12-100A 12.80 12.80 152.5 168.0

Non-bladed type

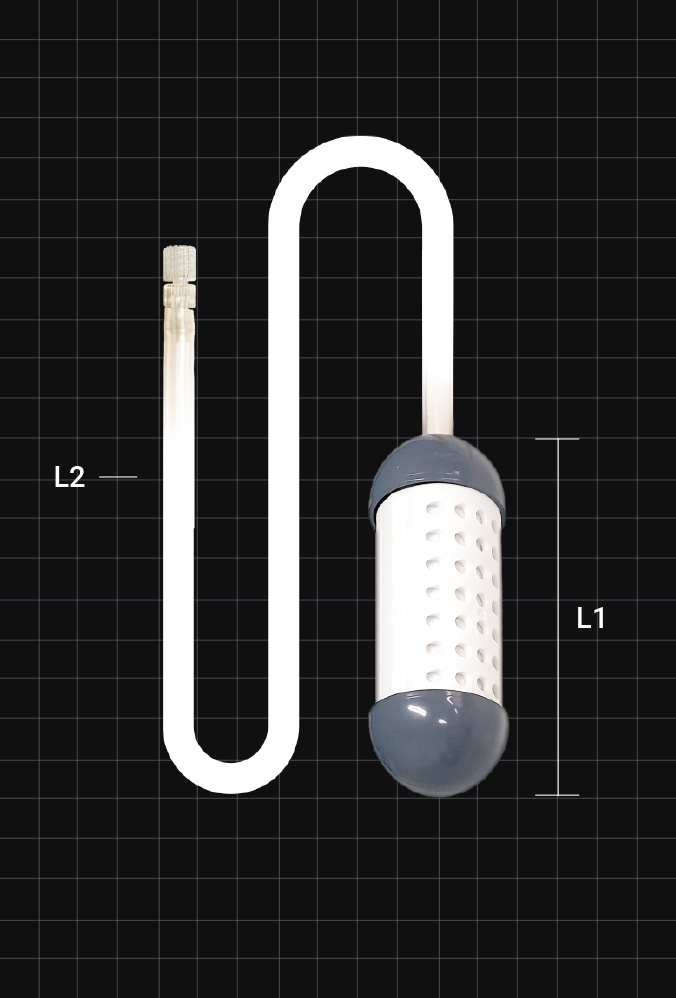

FILTER

Unit(mm)

Model Name L1 L2
NF 100A 103.5 500

Order information

F : + Filter

Model

EN-CP05-100A
EN-CP05-100AF

  • Diameter 5mm
  • Length 100mm
  • Quantity 5 / Box

Model

EN-CP05-75A
EN-CP05-75AF

  • Diameter 5mm
  • Length 75mm
  • Quantity 5 / Box

Model

EN-CP10-100A
EN-CP10-100AF

  • Diameter 5mm
  • Length 100mm
  • Quantity 5 / Box

Model

EN-CP12-75A
EN-CP12-75AF

  • Diameter 12mm
  • Length 75mm
  • Quantity 5 / Box

Model

EN-CP12-100A
EN-CP12-100AF

  • Diameter 12mm
  • Length 100mm
  • Quantity 5 / Box

META TROCAR

Inquiry List
