Neurosurgery
OpaCem
PMMA Bone Cement
With our continuous research and experience, we have been able to develop the new upgraded PMMA Bone Cement OpaCem.
The OpaCem cement includes 60% of X-ray contrast agent Zirconium Dioxide which allows to visualize the cement under fluoroscopy more clearly and determine the exact placement of cement.
Indications
Severely painful osteoporotic compression fractures Painful vertebral body tumors(metastasis or myeloma) Symptomatic Vertebral Hemangioma
Features
High radiopaque cement includes 60% of ZrO2 Optimized viscosity for Vertebroplasty and Kyphoplasty Short mixing and preparing time allows to inject the cement immediately Good mechanical properties

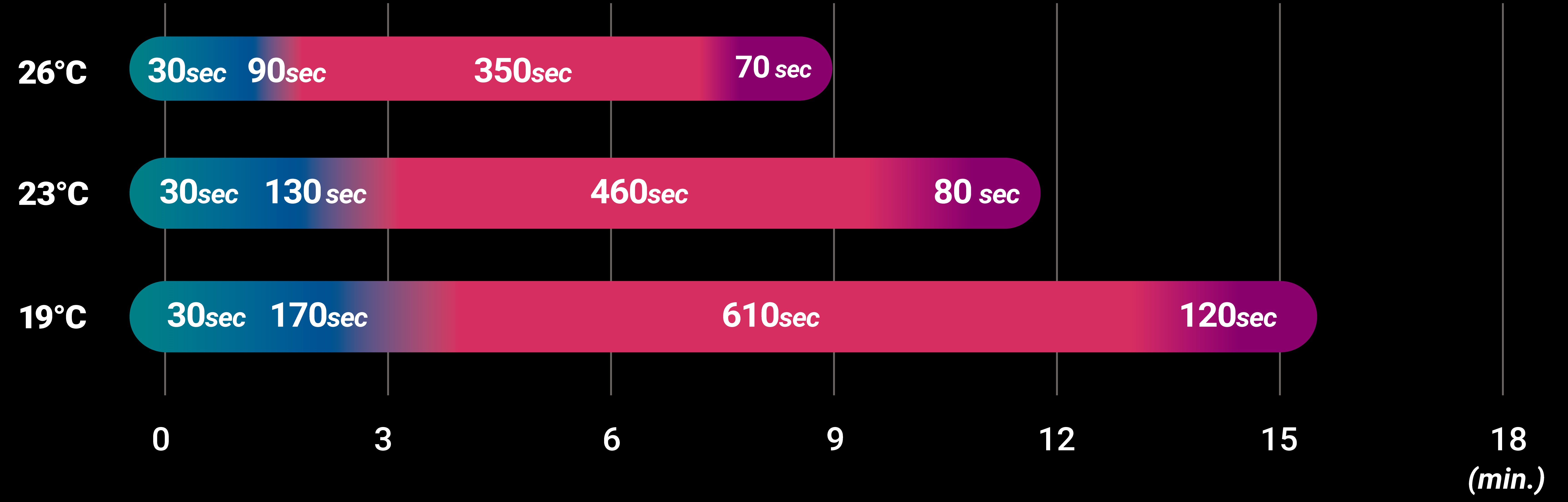

Chart of handling time at Various Temperature
Times shown in the chart were obtained by 2 hours storage at 20º before use condition
High radiopacity property

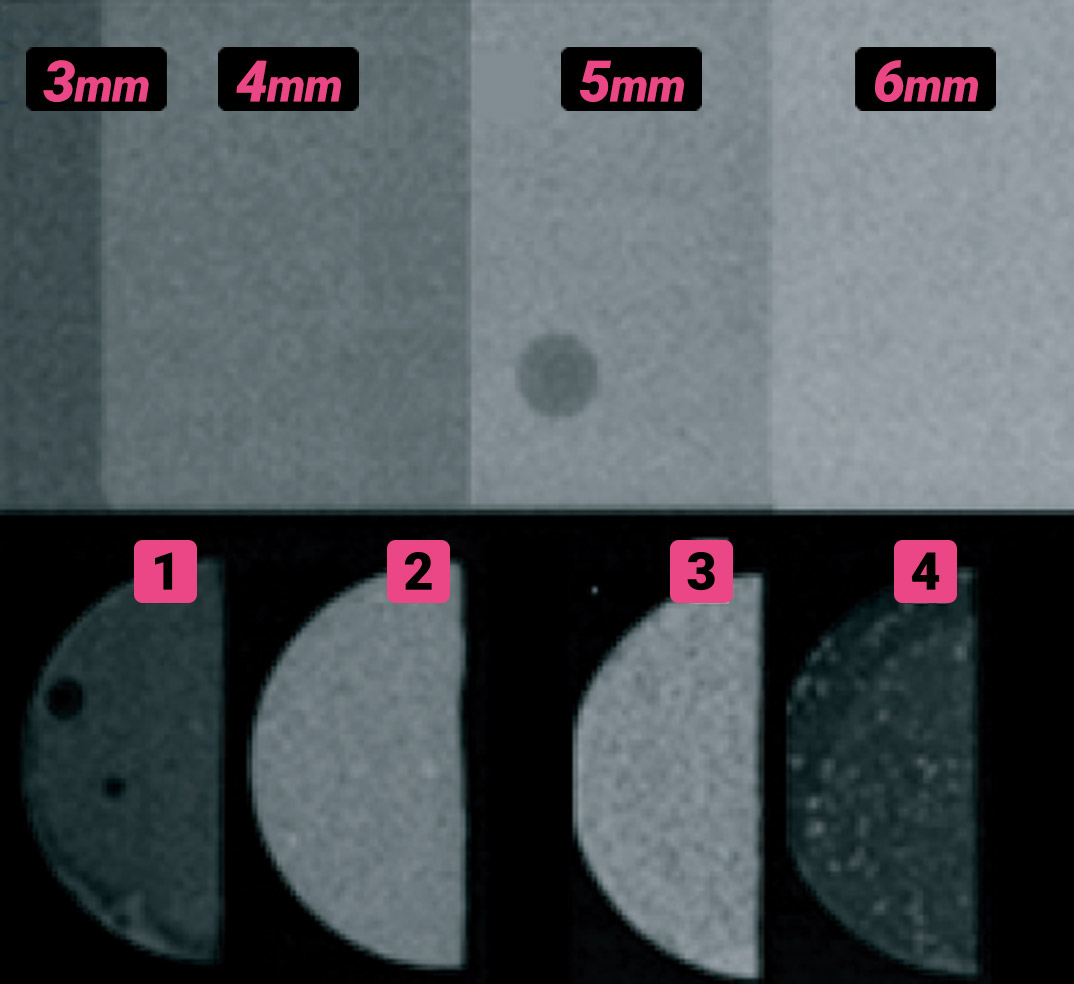

Pic 1 shows the AI step-wedge by 3, 4, 5, 6mm and below Pic shows the brightness of each product which can be compared to AI step-wedge
The following table shows the radiopacity property of OpaCem cement, NTCem Spine(old version), and two other brands.
Product Name NTCem Spine
Contrast agent name and amount added ZrO2 30%
Al mm 2.2
Product Name OpaCem
Contrast agent name and amount added ZrO2 60%
Al mm 4.6
Product Name "B" brand
Contrast agent name and amount added ZrO2 60%
Al mm 4.7
Product Name "S" brand
Contrast agent name and amount added BaSO4 30%
Al mm 2.4
Product Specification
Model Name OpaCem
Order No BG001
Components Powder 20g
Liquid 8.5g
